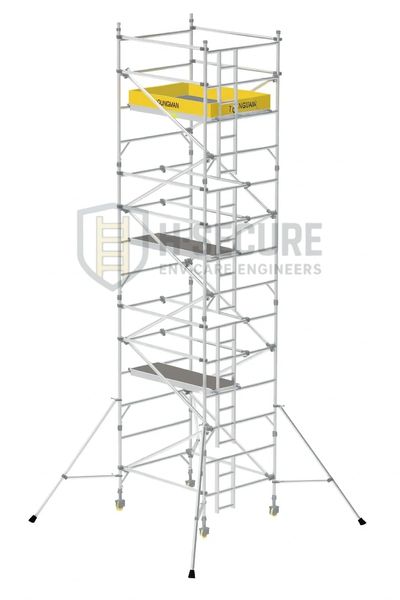

MODEL NO. 14500 ALUMINIUM DOUBLE WIDTH SCAFFOLD WITH LADDER

• Manufactured from strong alloy profile with welded joints
• H frames with Inbuilt Ladder Frame
• Tested Load Bearing Capacity: Meets EN 1004 Standards – 200 kg/m2.
• Tool free Assembly & Disassembly
• Fixed & Trap Door Non Slip Platforms with Toe Guards and Guard Rails
• Automatic Locking Claws
• Telescopic Stabilizers for Extra Stability
• 4 nos. 200mm Height Adjustable Swivel Castors for Easy Manuvaerability

 1450mm(W) x 1800mm/2500mm(Length)

Platform Height        Total Height

     2.2                                           3.2

     2.7                                           3.7

     3.2                                           4.2

     3.7                                           4.7

     4 .2                                          5.2

    4.7                                           5.7

    5.2                                           6.2

    5.7                                           6.7

    6.2                                           7.2

    7.2                                           8.2

Platform Height     Total Height

            7.7                                8.7

            8.2                                9.2

            8.7                                9.7

            9.2                              10.2

            9.7                              10.7

        10.2                               11.2

        10.7                               11.7

        11.2                               12.2

        11.7                               12.7

       12.2                                13.2

 150 KGs

Chases Beam, Cantilevers Set, Counter Weights  Chases Beam, Cantilever Set, Counter Weights
